gaia_dxf_parser Struct Reference

wrapper for DXF Parser object More...

#include <gg_dxf.h>

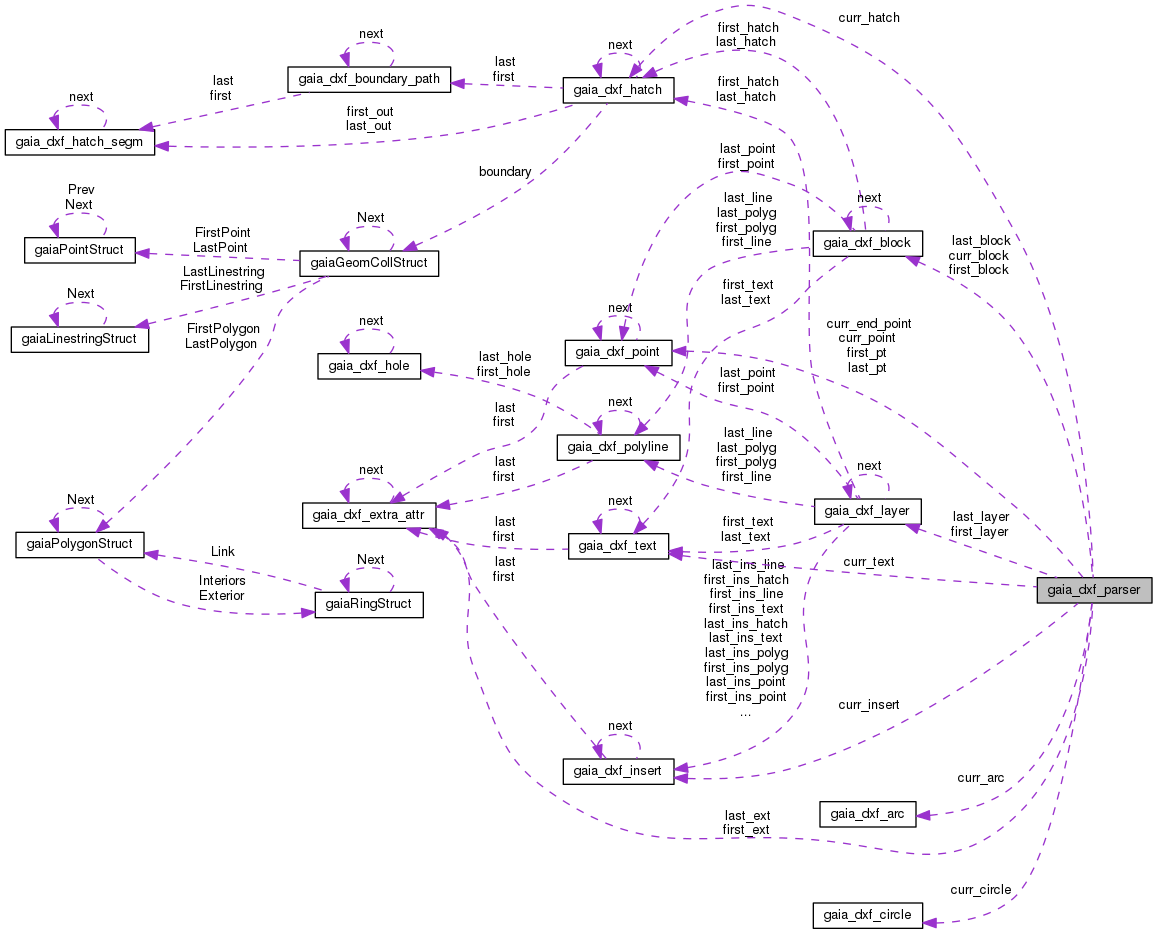

Collaboration diagram for gaia_dxf_parser:
Collaboration graph
[legend]

Data Fields

char * filename
 OUT: origin/input filename.

gaiaDxfLayerPtr first_layer
 OUT: pointer to first DXF Layer object [linked list].

gaiaDxfLayerPtr last_layer
 OUT: pointer to last DXF Layer object [linked list].

gaiaDxfBlockPtr first_block
 OUT: pointer to first DXF Block object [linked list].

gaiaDxfBlockPtr last_block
 OUT: pointer to last DXF Block object [linked list].

int force_dims
 IN: parser option - dimension handlig.

int srid
 IN: parser option - the SRID.

const char * selected_layer
 IN: parser option - pointer the single Layer Name string.

const char * prefix
 IN: parser option - pointer to prefix string for DB tables.

int linked_rings
 IN: parser option - linked rings special handling.

int unlinked_rings
 IN: parser option - unlinked rings special handling.

int line_no
 internal parser variable

int op_code_line
 internal parser variable

int op_code
 internal parser variable

int section
 internal parser variable

int tables
 internal parser variable

int blocks
 internal parser variable

int entities
 internal parser variable

int is_layer
 internal parser variable

int is_block
 internal parser variable

int is_text
 internal parser variable

int is_point
 internal parser variable

int is_polyline
 internal parser variable

int is_lwpolyline
 internal parser variable

int is_line
 internal parser variable

int is_circle
 internal parser variable

int is_arc
 internal parser variable

int is_vertex
 internal parser variable

int is_hatch
 internal parser variable

int is_hatch_boundary
 internal parser variable

int is_insert
 internal parser variable

int eof
 internal parser variable

int error
 internal parser variable

char * curr_layer_name
 internal parser variable

gaiaDxfText curr_text
 internal parser variable

gaiaDxfInsert curr_insert
 internal parser variable

gaiaDxfBlock curr_block
 internal parser variable

gaiaDxfPoint curr_point
 internal parser variable

gaiaDxfPoint curr_end_point
 internal parser variable

gaiaDxfCircle curr_circle
 internal parser variable

gaiaDxfArc curr_arc
 internal parser variable

int is_closed_polyline
 internal parser variable

gaiaDxfPointPtr first_pt
 internal parser variable

gaiaDxfPointPtr last_pt
 internal parser variable

char * extra_key
 internal parser variable

char * extra_value
 internal parser variable

gaiaDxfExtraAttrPtr first_ext
 internal parser variable

gaiaDxfExtraAttrPtr last_ext
 internal parser variable

gaiaDxfHatchPtr curr_hatch
 internal parser variable

int undeclared_layers
 internal parser variable


Detailed Description

wrapper for DXF Parser object


The documentation for this struct was generated from the following file:
