gaia_dxf_block Struct Reference

wrapper for DXF Block object More...

#include <gg_dxf.h>

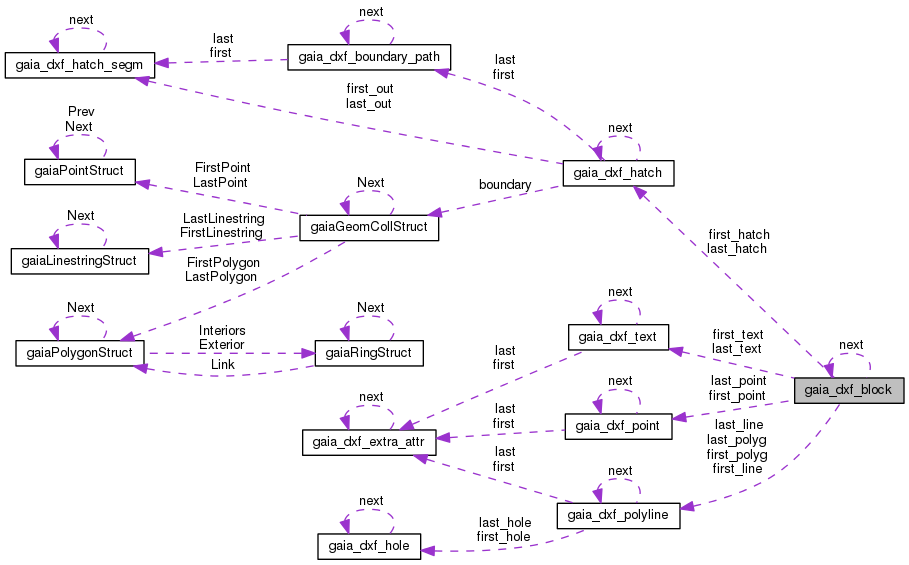

Collaboration diagram for gaia_dxf_block:
Collaboration graph
[legend]

Data Fields

int hasInsert
 Boolean flag: this block is referenced by some Insert.

char * layer_name
 pointer to Layer Name string

char * block_id
 pointer to Block ID string

gaiaDxfTextPtr first_text
 pointer to first DXF Text object [linked list]

gaiaDxfTextPtr last_text
 pointer to last DXF Text object [linked list]

gaiaDxfPointPtr first_point
 pointer to first DXF Point object [linked list]

gaiaDxfPointPtr last_point
 pointer to last DXF Point object [linked list]

gaiaDxfPolylinePtr first_line
 pointer to first DXF Polyline (Linestring) object [linked list]

gaiaDxfPolylinePtr last_line
 pointer to last DXF Polyline (Linestring) object [linked list]

gaiaDxfPolylinePtr first_polyg
 pointer to first DXF Polyline (Polygon) object [linked list]

gaiaDxfPolylinePtr last_polyg
 pointer to last DXF Polyline (Polygon) object [linked list]

gaiaDxfHatchPtr first_hatch
 pointer to first DXF Hatch object [linked list]

gaiaDxfHatchPtr last_hatch
 pointer to last DXF Hatch object [linked list]

int is3Dtext
 boolean flag: contains 3d Text objects

int is3Dpoint
 boolean flag: contains 3d Point objects

int is3Dline
 boolean flag: contains 3d Polyline (Linestring) objects

int is3Dpolyg
 boolean flag: contains 3d Polyline (Polygon) objects

struct gaia_dxf_blocknext
 pointer to next item [linked list]


Detailed Description

wrapper for DXF Block object


The documentation for this struct was generated from the following file:
