wrapper for DXF Pattern Hatch object More...

#include <gg_dxf.h>

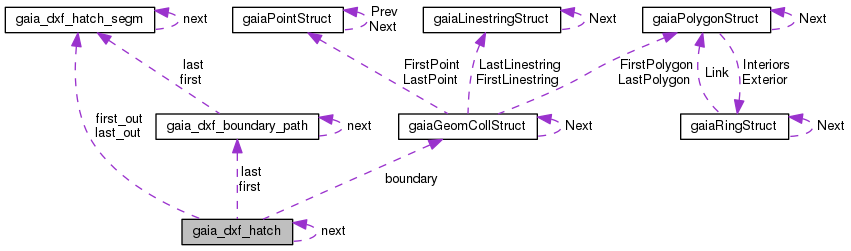

Collaboration diagram for gaia_dxf_hatch:

Data Fields
double	spacing
	hatch pattern spacing

double	angle
	hatch line angle

double	base_x
	hatch line base X

double	base_y
	hatch line base Y

double	offset_x
	hatch line offset X

double	offset_y
	hatch line offset Y

gaiaDxfBoundaryPathPtr	first
	pointer to first Boundary

gaiaDxfBoundaryPathPtr	last
	pointer to last Boundary

gaiaGeomCollPtr	boundary
	pointer to Boundary geometry

gaiaDxfHatchSegmPtr	first_out
	pointer to first Pattern segment

gaiaDxfHatchSegmPtr	last_out
	pointer to last Pattern segment

struct gaia_dxf_hatch *	next
	pointer to next item [linked list]

Detailed Description

wrapper for DXF Pattern Hatch object

The documentation for this struct was generated from the following file:
