SpatiaLite  4.3.0
Data Fields
gaiaGeomCollStruct Struct Reference

Container for OGC GEOMETRYCOLLECTION Geometry. More...

#include <gg_structs.h>

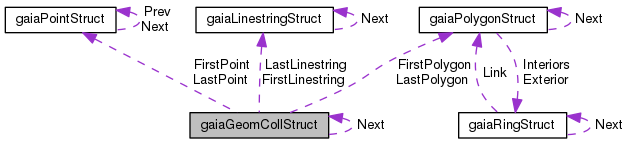

Collaboration diagram for gaiaGeomCollStruct:
Collaboration graph
[legend]

Data Fields

int Srid
 the SRID

char endian_arch
 CPU endian arch.

char endian
 BLOB Geometry endian arch.

const unsigned char * blob
 BLOB-Geometry buffer.

unsigned long size
 BLOB-Geometry buffer size (in bytes)

unsigned long offset
 current offset [BLOB parsing]

gaiaPointPtr FirstPoint
 pointer to first POINT [linked list]; may be NULL

gaiaPointPtr LastPoint
 pointer to last POINT [linked list]; may be NULL

gaiaLinestringPtr FirstLinestring
 pointer to first LINESTRING [linked list]; may be NULL

gaiaLinestringPtr LastLinestring
 pointer to last LINESTRING [linked list]; may be NULL

gaiaPolygonPtr FirstPolygon
 pointer to first POLYGON [linked list]; may be NULL

gaiaPolygonPtr LastPolygon
 pointer to last POLYGON [linked list]; may be NULL

double MinX
 MBR: min X.

double MinY
 MBR: min Y.

double MaxX
 MBR: max X.

double MaxY
 MBR: max Y.

int DimensionModel
 one of GAIA_XY, GAIA_XY_Z, GAIA_XY_M, GAIA_XY_ZM

int DeclaredType
 any valid Geometry Class type

struct gaiaGeomCollStructNext
 pointer to next item [linked list]


Detailed Description

Container for OGC GEOMETRYCOLLECTION Geometry.

Examples:
demo1.c, demo2.c, demo3.c, and demo4.c.

The documentation for this struct was generated from the following file:
